Build and deployment pipeline on GitHub Actions

A pipeline is where intentions about security and quality are either enforced on every change or left to chance. It is easy to agree that code should be scanned, that dependencies should be checked, that images should be signed, and that nothing should reach production without review. The pipeline determines whether those checks run on every change rather than only when someone remembers to run them. The design here makes them happen automatically, makes the checks block rather than merely warn, and produces, as a side effect of how the work is done, a complete record of what was built, what it was scanned for, who approved it, and where it went. The tools named are examples. The shape of the pipeline matters more than any one vendor, and any of the named tools can be swapped for an equivalent without changing the design.

Requirements

The requirements the pipeline has to satisfy, the quality attributes it is judged on, the constraints it must respect, and the assumptions it rests on.

Functional requirements

Number	Requirement
1	Run security and quality checks automatically on every change before it can merge.
2	Produce one immutable, signed artifact and promote it unchanged through every environment.
3	Block any change that fails a gate from progressing.
4	Authenticate to Amazon Web Services without storing long lived credentials.
5	Deploy to Amazon Elastic Kubernetes Service and to Amazon Elastic Container Service.
6	Promote the same artifact through development, test, staging, and production with approvals.
7	Deploy to two regions and roll back quickly on failure.
8	Keep an auditable record of what was built, scanned, signed, approved, and deployed.

Quality attributes

Number	Attribute	Intent
1	Security	Every change scanned, only signed and compliant artifacts deployed, and no standing credentials.
2	Auditability	Reconstruct the full provenance of anything in production, retained for audit.
3	Reliability	Safe rollouts and fast rollback, across two regions.
4	Speed	Fast feedback to developers, with independent checks running in parallel.
5	Repeatability	The same pipeline and the same artifact every time.
6	Least privilege	Each stage and each environment holds only the access it needs.

Constraints and assumptions

Number	Constraint
1	Deployments target the two approved regions inside the landing zone.
2	Runners are GitHub hosted, so the cluster and private resources are not reachable from a runner.
3	Only signed images that pass every gate may run in production.
4	Source, artifacts, and deployment evidence are retained for audit.

Number	Assumption
1	Application code and infrastructure as code live in GitHub repositories.
2	The landing zone provides the registries, the clusters, the roles, and the networking.
3	Workloads are packaged as container images.

Architecture decisions and rationale

The decisions that shaped the pipeline, each with the alternative that was set aside and the cost that was accepted.

1. Security checks inside the pipeline rather than a review at the end

Decision. Run static analysis, dependency analysis, secret scanning, infrastructure as code scanning, image scanning, and dynamic analysis as stages of the pipeline on every change.

Alternatives. A separate security review performed late, by a different team, after the code is written.

Rationale. A check that runs on every change is consistent and cheap to fix, where a late review finds problems when they are expensive to undo and creates a bottleneck. This serves functional requirement 1 and the security attribute.

Consequences. The pipeline takes longer because it always checks, which is reduced by running the independent checks in parallel.

2. Gates that block rather than warnings that are ignored

Decision. Make a failed check fail the build, so a change that does not meet the bar cannot merge or deploy.

Alternatives. Reporting findings as advisory notes that a developer may choose to act on.

Rationale. A warning that does not block is a warning that is eventually ignored under deadline pressure, where a gate that blocks turns the policy into something that actually holds. This serves functional requirement 3.

Consequences. A noisy or wrong check stops work, so the thresholds are tuned and exceptions are explicit and time limited rather than silent.

3. OpenID Connect federation rather than long lived access keys

Decision. Authenticate from GitHub to Amazon Web Services with OpenID Connect, where the workflow exchanges a short lived token for temporary credentials by assuming a role.

Alternatives. Storing an access key and a secret key in the repository as secrets.

Rationale. A stored key is a standing credential that nobody rotates and that leaks badly, where a federated token is short lived, scoped by the role's trust policy, and never stored. This serves functional requirement 4 and the least privilege attribute.

Consequences. Each environment needs a role with a carefully written trust policy, which is the intended point of control.

4. One immutable, signed artifact promoted by digest rather than rebuilt per environment

Decision. Build the image once, sign it, and promote that exact image by its content digest through every environment.

Alternatives. Rebuilding the image for each environment, or promoting by a mutable tag such as latest.

Rationale. The thing tested in staging must be the thing that runs in production, bit for bit, which is only true if the same digest is promoted, where a rebuild or a moving tag can quietly change what runs. This serves functional requirement 2 and the repeatability attribute.

Consequences. Promotion moves a reference to an artifact rather than running a build, which is simpler and faster as well as safer.

5. Amazon Elastic Container Registry as the single artifact source

Decision. Push every image to Amazon Elastic Container Registry with tag immutability and enhanced scanning, and pull only from there.

Alternatives. Pulling images from several registries, including public ones, at deployment time.

Rationale. A single private registry with immutable tags and continuous scanning by Amazon Inspector is the one place to know exactly what an image is and whether it has developed a known vulnerability since it was built. This serves functional requirement 8 and the security attribute.

Consequences. Base images must be mirrored into the registry rather than pulled from the internet, which is the intended control.

6. Pull based GitOps with ArgoCD for Kubernetes rather than pushing into the cluster

Decision. For Amazon Elastic Kubernetes Service, have the pipeline commit the desired state to a Git repository, and let ArgoCD running inside each cluster pull and apply it.

Alternatives. Having the pipeline reach into the cluster and apply changes directly.

Rationale. Because runners are GitHub hosted, a push model would require opening a path from the runner into the private cluster, where a pull model keeps the cluster unreachable and limits the runner to pushing an image and committing a file, which is the smallest possible blast radius. This serves functional requirement 5 within constraint 2.

Consequences. The cluster state lives in Git, which is a benefit, since the desired state is now reviewable, auditable, and the same in both regions.

7. Blue and green for Elastic Container Service rather than in place replacement

Decision. For Amazon Elastic Container Service, deploy with AWS CodeDeploy in a blue and green pattern, shifting traffic only once the new version is healthy.

Alternatives. Replacing the running tasks in place with the new version.

Rationale. Keeping the old version serving until the new one is proven, then shifting traffic, makes a bad release a quick and automatic rollback rather than an outage. This serves functional requirement 7 and the reliability attribute.

Consequences. Both versions run briefly during a release, a small and temporary use of extra capacity.

8. The one artifact in two regions, admitted only if signed

Decision. Deploy the same artifact to both regions, and enforce at the cluster that only images carrying a valid signature may run, using an admission policy.

Alternatives. Deploying to one region, or trusting the pipeline alone to have signed the image.

Rationale. A second region meets the recovery requirement, and an admission check inside the cluster is a second, independent enforcement of the signing rule, so an image that somehow arrived unsigned still cannot run. This serves functional requirement 7 and the security attribute.

Consequences. The signing identity and the policy must be maintained in both regions, which is part of the cluster baseline.

The engineering standards

A pipeline only enforces what the team has agreed to. The standards below are the agreed engineering rules, and the pipeline enforces every one of them on every change rather than leaving them to memory. The right hand column is where each standard stops being a document and becomes something that blocks.

Area	The standard	How the pipeline holds it
Source control	Trunk based development, short lived branches, a protected main branch, and signed commits.	Branch protection rules, a linear history, and a signed commit check on every pull request.
Code review	At least one approving review, no self approval, and every comment resolved before merge.	Required reviews and a code owners file, enforced as merge conditions.
Infrastructure as code	All infrastructure defined in code, with no change made by hand in the console.	The pipeline runs the plan on a pull request and applies only from main, with drift detection.
Testing	Unit and integration tests above a coverage threshold, with contract tests on every interface.	Tests are a blocking gate, and coverage below the threshold fails the build.
Static analysis	Linting, formatting, type checks, and static application security testing on every change.	Each runs as a parallel gate, and a new finding fails the build rather than warning.
Dependencies and supply chain	Reviewed and pinned dependencies, a software bill of materials, and signed images with build provenance.	Software composition analysis is a gate, and the build attaches the bill of materials and the provenance to the signed image.
Secrets	No secret in source, and only short lived federated credentials at deploy time.	Secret scanning with push protection, and OpenID Connect federation in place of any stored key.
Container images	A minimal base image, run as a non root user, with no high or critical vulnerability.	Image scanning by Amazon Inspector is a gate, and a cluster admission policy refuses anything unsigned or unscanned.
Artifacts and versioning	Semantic versioning, and one immutable artifact promoted unchanged by its digest.	The image is built once and promoted by digest, with tag immutability in Amazon Elastic Container Registry.
Observability	Structured logs, traces, metrics, and health endpoints ship with every service.	A readiness check confirms the required signals before a deployment is promoted.
Release and rollback	Progressive delivery, automated rollback on a failed health check, and a recorded change.	Blue and green or GitOps with health gates, an automatic rollback, and a change record written for audit.
Ownership	Every service has a named owner and a runbook.	A code owners file and a required service manifest, checked on every change.

The regulated baseline

A standard is only as strong as the number attached to it. The settings below are the concrete values this pipeline is configured to in a highly regulated environment such as a payments platform under the Payment Card Industry Data Security Standard. They are deliberately strict, and an exception to any of them is explicit, approved, and time limited rather than silent.

Control	Required value in a regulated environment
Protected main branch	No direct push, no force push, a linear history, and every required check green before a merge.
Signed commits	Required and verified on every commit.
Pull request review	2 approvals, at least one from a code owner. Self approval refused. Approvals dismissed on a new commit.
Test coverage	≥ 80% overall and ≥ 90% on money handling code, and never below the main branch.
Static analysis	0 new high or critical findings. Type checking in strict mode.
Dependency scanning	0 known high or critical vulnerabilities in shipped dependencies, each pinned by hash.
Software bill of materials	Generated in the CycloneDX format on every build and stored with the artifact.
Build provenance	Attested to supply chain level 3 and verified before a deploy.
Secret scanning	Push protection on. Any detected secret blocks the push.
Cloud credentials	No long lived keys. Federated through OpenID Connect, session lifetime ≤ 1 hour, a separate role per environment.
Image signing	Keyless signature required, verified by a cluster admission policy in both regions.
Image vulnerabilities	0 high or critical at deploy time. Base image rebuilt at least every 7 days. Runs as a non root user with a read only root filesystem.
Registry	Tag immutability on, continuous scanning by Amazon Inspector.
Artifact promotion	The same image digest from development through to production, never rebuilt.
Environments and approval	Development, test, staging, and production. A manual approval by a second authorized person gates the move to production.
Regions	2, ca-central-1 and ca-west-1.
Release strategy	Blue and green, or a canary at 10%, 50%, then 100%, with automatic rollback on a failed health check or an error budget breach.
Rollback time	≤ 5 minutes, with the previous version kept ready.
Encryption	Transport security version 1.2 or higher in transit, customer managed keys at rest.
Audit retention	Pipeline logs, scan reports, approvals, the bill of materials, and provenance kept for 7 years on storage under object lock.
Change record	Every production deploy linked to a change ticket and traceable from commit to running service.
Access	Least privilege on every role, with multi factor authentication on all human access.

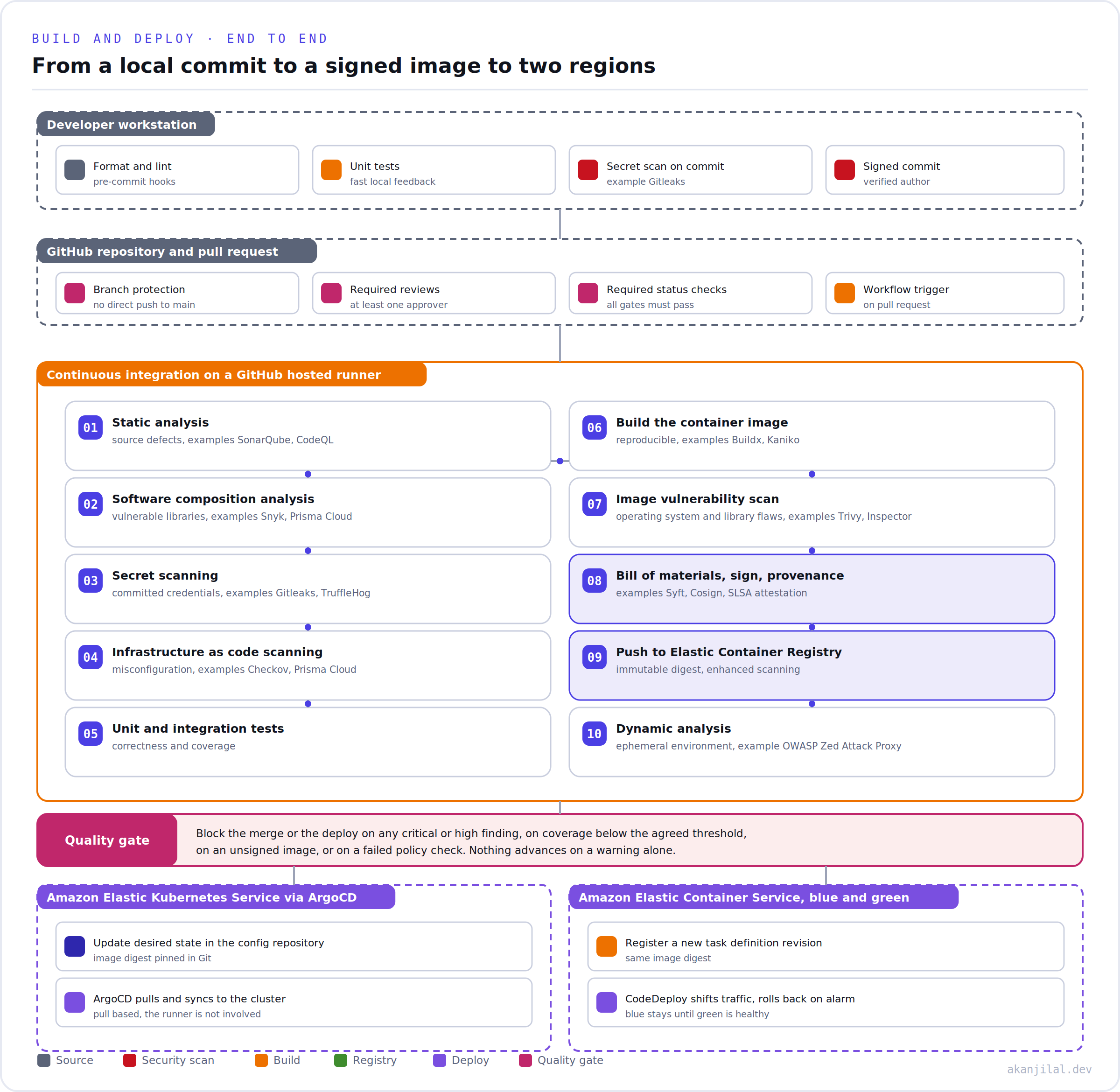

The developer journey

The journey begins before the pipeline does. On the developer's own machine, fast checks run on every commit, formatting and linting, the unit tests, a quick secret scan, and a signed commit, so that the most common mistakes never even reach the repository. The change then arrives as a pull request, which cannot be merged directly and which triggers the pipeline. From there the work runs on a GitHub hosted runner through a sequence of stages, each of which can fail the build, ending in a signed image pushed to the registry and a deployment to either platform.

Expressed as a workflow, the stages are ordinary steps, and the important detail is that each scanning step is configured to fail the job when it finds something above the agreed severity rather than to pass and report.

permissions:
  id-token: write          # request the OpenID Connect token
  contents: read

jobs:
  build:
    runs-on: ubuntu-latest
    steps:
      - uses: actions/checkout@v4
      - name: Static analysis
        run: sonar-scanner                       # fails on a failed quality gate
      - name: Software composition analysis
        run: snyk test --severity-threshold=high
      - name: Secret scan
        run: gitleaks detect --no-banner
      - name: Infrastructure as code scan
        run: checkov --directory infra
      - name: Build the image
        run: docker buildx build --tag "$IMAGE_DIGEST_REF" --push .
      - name: Image vulnerability scan
        run: trivy image --exit-code 1 --severity HIGH,CRITICAL "$IMAGE_DIGEST_REF"
      - name: Sign and attest
        run: cosign sign --yes "$IMAGE_DIGEST_REF"

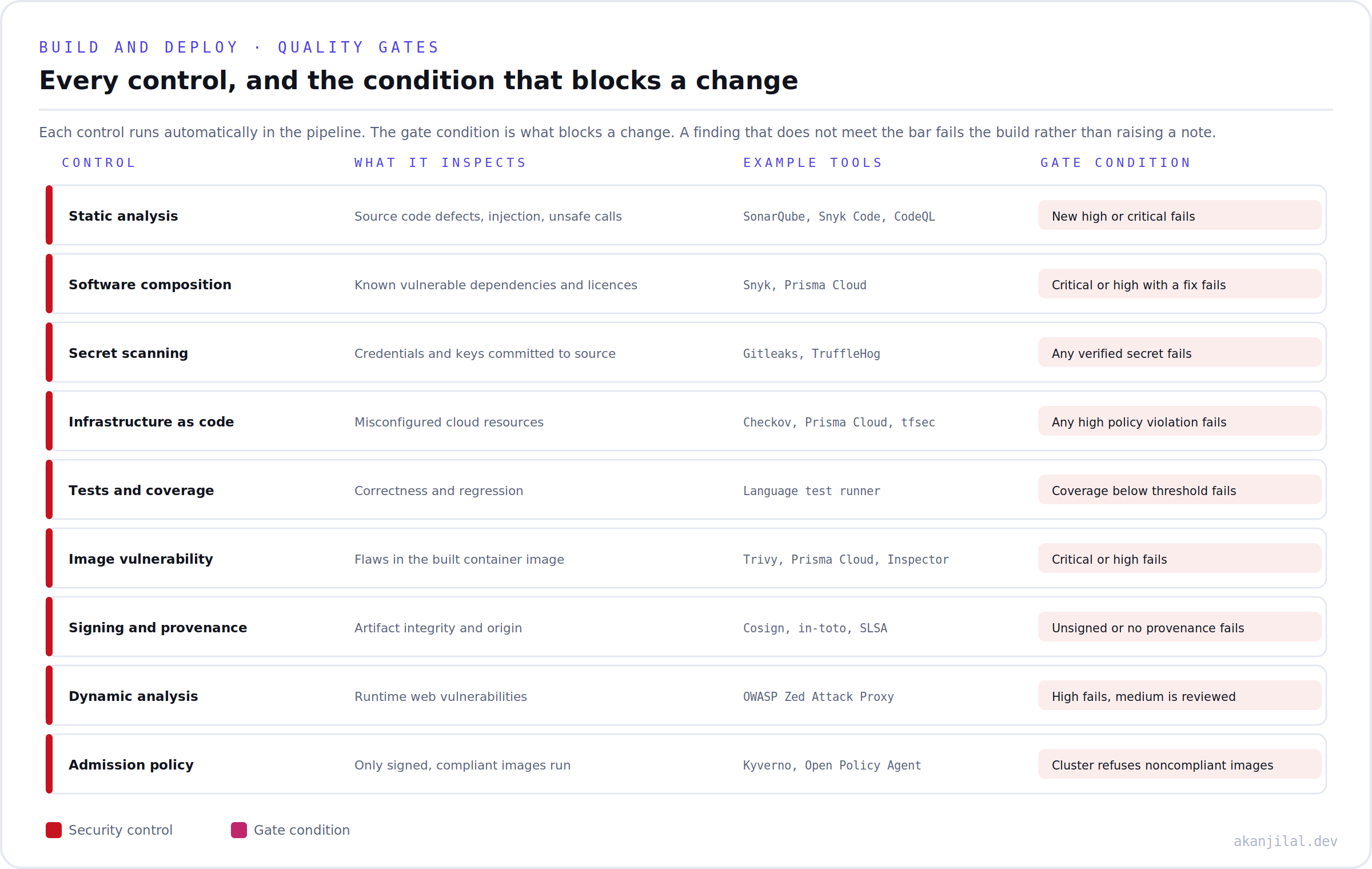

The quality gates

The gates are central to the design, so it is worth setting them out plainly. Each control inspects something specific, and each has a condition that decides whether a change may proceed. The bar is deliberately strict for anything that reaches production, and the conditions are part of the pipeline configuration rather than a document that describes good intentions.

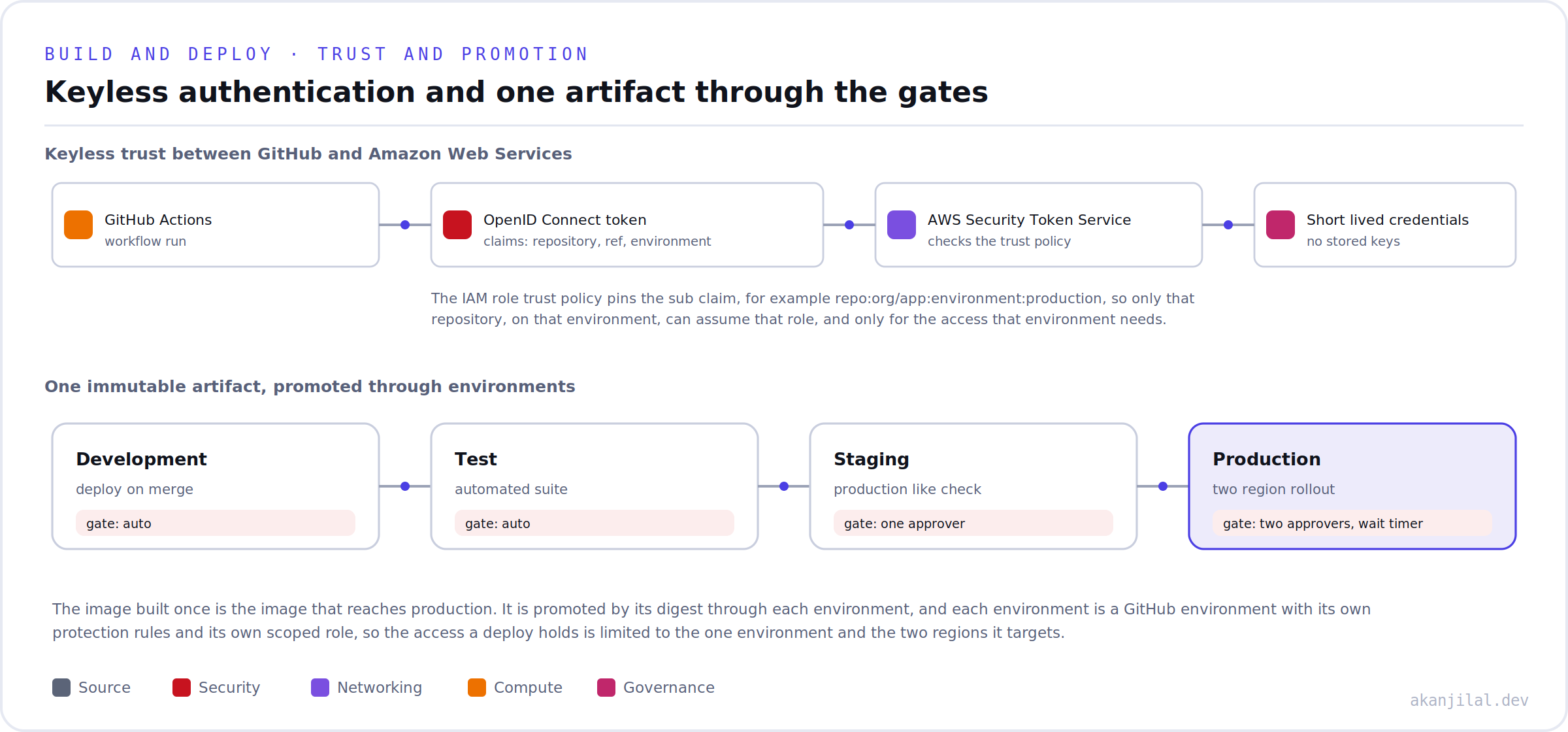

Keyless trust and promotion

The pipeline never holds a long lived key. When a job needs to act in Amazon Web Services, it asks GitHub for a short lived OpenID Connect token whose claims describe the repository, the branch, and the environment, and it presents that token to assume a role. The role's trust policy pins the claim, so only that repository, on that environment, can assume it, and the credentials returned are temporary and scoped to what the environment needs.

The trust is expressed in the role's policy. The condition on the subject claim is what limits which workflow, on which environment, may assume the role.

{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Effect": "Allow",
      "Principal": {
        "Federated": "arn:aws:iam::111122223333:oidc-provider/token.actions.githubusercontent.com"
      },
      "Action": "sts:AssumeRoleWithWebIdentity",
      "Condition": {
        "StringEquals": {
          "token.actions.githubusercontent.com:aud": "sts.amazonaws.com",
          "token.actions.githubusercontent.com:sub": "repo:akanjilal-dev/payments-app:environment:production"
        }
      }
    }
  ]
}

The same immutable image is promoted by its digest through development, test, staging, and production. Each environment is a GitHub environment with its own protection rules, so production requires two approvers and a wait timer, and each environment has its own role, so a deployment to one environment cannot touch another.

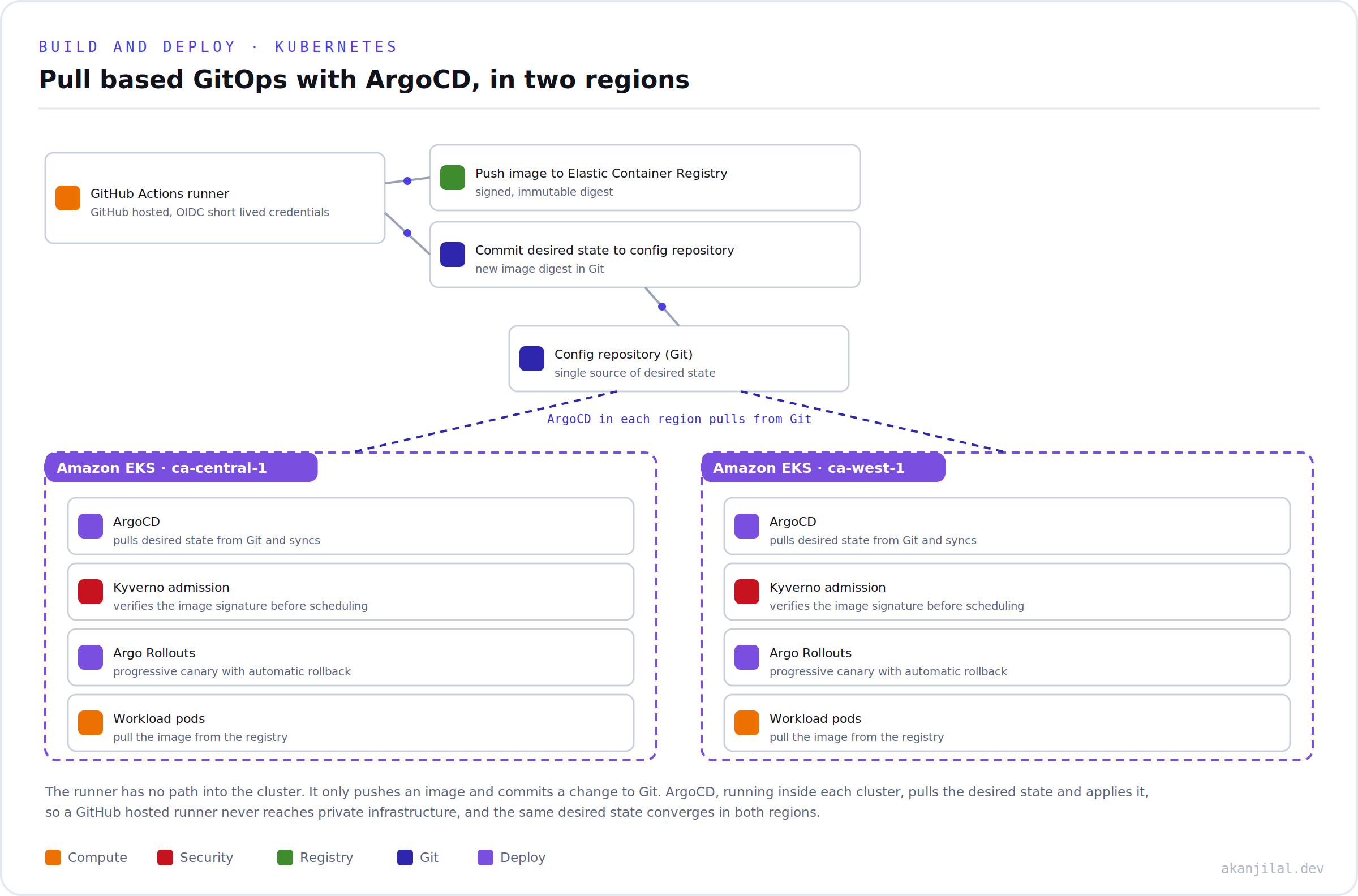

Deploying to Kubernetes with GitOps

For Amazon Elastic Kubernetes Service the deployment is pull based. The pipeline pushes the signed image to the registry and commits the new image digest into a configuration repository that holds the desired state of the clusters. ArgoCD, running inside each cluster, watches that repository, notices the change, pulls it, and reconciles the cluster to match. The runner is never given a way into the cluster, which is exactly what makes a GitHub hosted runner acceptable for a private, regulated cluster.

Inside the cluster, a policy refuses to schedule any image that does not carry a valid signature from the pipeline's identity, which is the second, independent enforcement of the signing rule. Argo Rollouts then moves the new version in as a canary and rolls back automatically if it is unhealthy.

apiVersion: kyverno.io/v1
kind: ClusterPolicy
metadata:
  name: require-signed-images
spec:
  validationFailureAction: Enforce
  rules:
    - name: verify-signature
      match:
        any:
          - resources:
              kinds: [ Pod ]
      verifyImages:
        - imageReferences:
            - "111122223333.dkr.ecr.ca-central-1.amazonaws.com/*"
          attestors:
            - entries:
                - keyless:
                    issuer: "https://token.actions.githubusercontent.com"
                    subject: "https://github.com/akanjilal-work/payments-app"

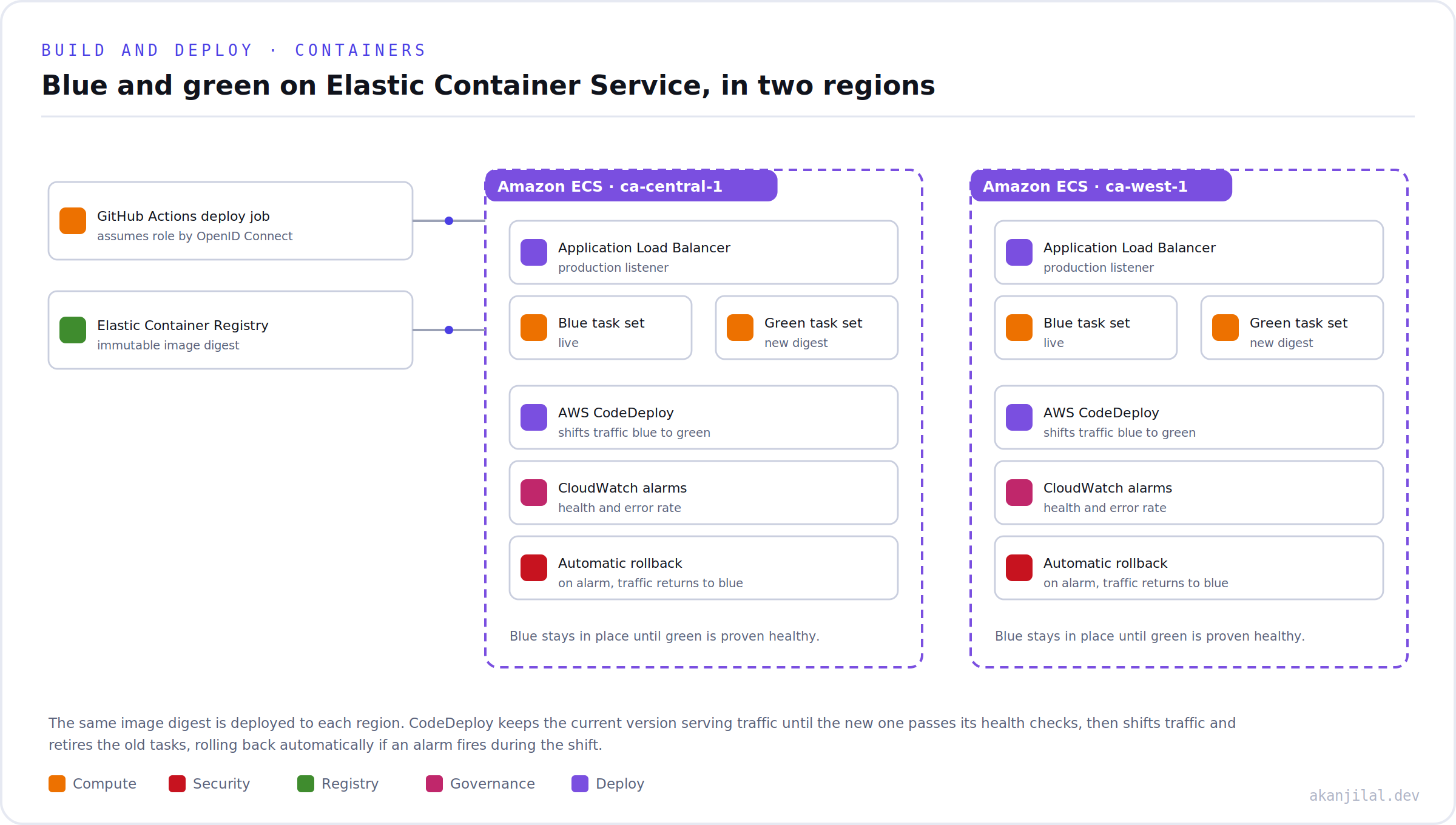

Deploying to the container service with blue and green

For Amazon Elastic Container Service the deployment is push based but safe. A deploy job assumes its scoped role, registers a new task definition that points at the same image digest, and hands the release to AWS CodeDeploy, which stands up the new version alongside the old one behind the load balancer. The current version keeps serving traffic until the new one passes its health checks, at which point traffic shifts. If an alarm fires during the shift, the release rolls back automatically and the old version simply keeps serving.

Both paths deploy the same signed artifact to both regions, so a release is consistent across the estate, and a regional problem is handled by the landing zone's regional failover rather than by the pipeline. The result is a pipeline that turns a local commit into a production change through a sequence of checks that cannot be skipped, that holds no standing credentials, that deploys in a way that is quick to undo, and that leaves behind a complete and honest record of how the change got there.
